CERAM TRADING L.L.C.User manual
UAE · GK3
GK3
16K resin printing with automatic heating and resin feeding. GK3-T and GK3-B configurations share one platform.
Printer with the lid open
Enquire about this device
Configuration, pricing and availability are confirmed with our team.
Technical specifications
| Build volume | 211 × 118 × 240 mm |
|---|---|
| LCD resolution | 16K · 15,120 × 6,230 px |
| XY pixel size | 14 × 19 μm |
| Light source | 405 nm · COB |
| Layer thickness | 0.03 / 0.05 / 0.1 mm |
| Exposure at 0.05 mm | 1.5–2.5 s |
| Resin heating | 25 / 30°C |
| Resin feeding | Automatic |
| Cartridge capacity | 1.2 kg |
| Camera | 720p |
| Connectivity | USB / Wi-Fi / Ethernet |
| Controls | Touchscreen / app |
| Slicers | Printer software / CHITUBOX / Lychee |
| Formats | STL / OBJ |
| Release film | NFEP |
| Voltage | 100–240 V |
| Power | Printing 130 W · heating 120 W |
| Dimensions | 392 × 332 × 520 mm |
Compare configuration specifications
| Version | Z-axis mechanism |
|---|---|
| GK3-T | T-type lead screw |
| GK3-B | Ball screw |
A closer look at GK3
Explore the print chamber, everyday handling and dental model applications.

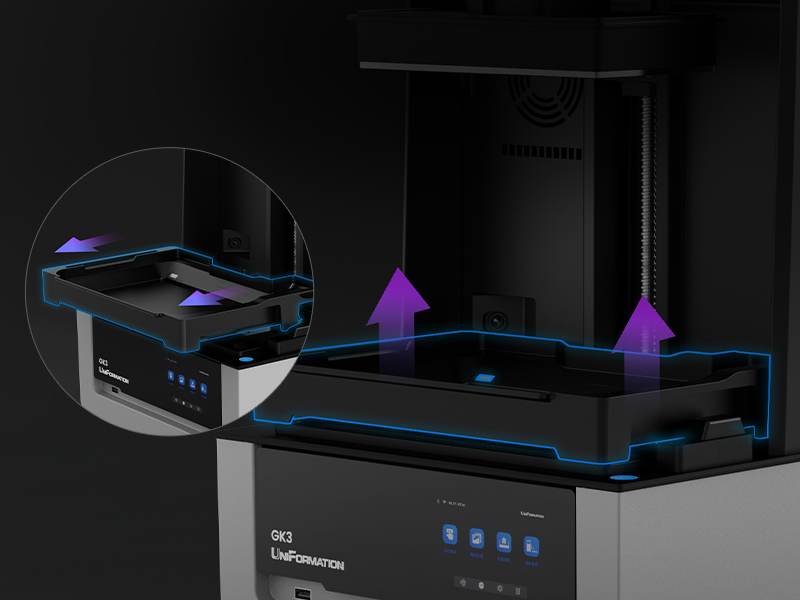

Quick-release resin vat
Remove and refit the resin vat for cleaning and maintenance.
Resin drip hanger
Hang the build plate to drain excess resin back into the vat.
Illustrative dental models

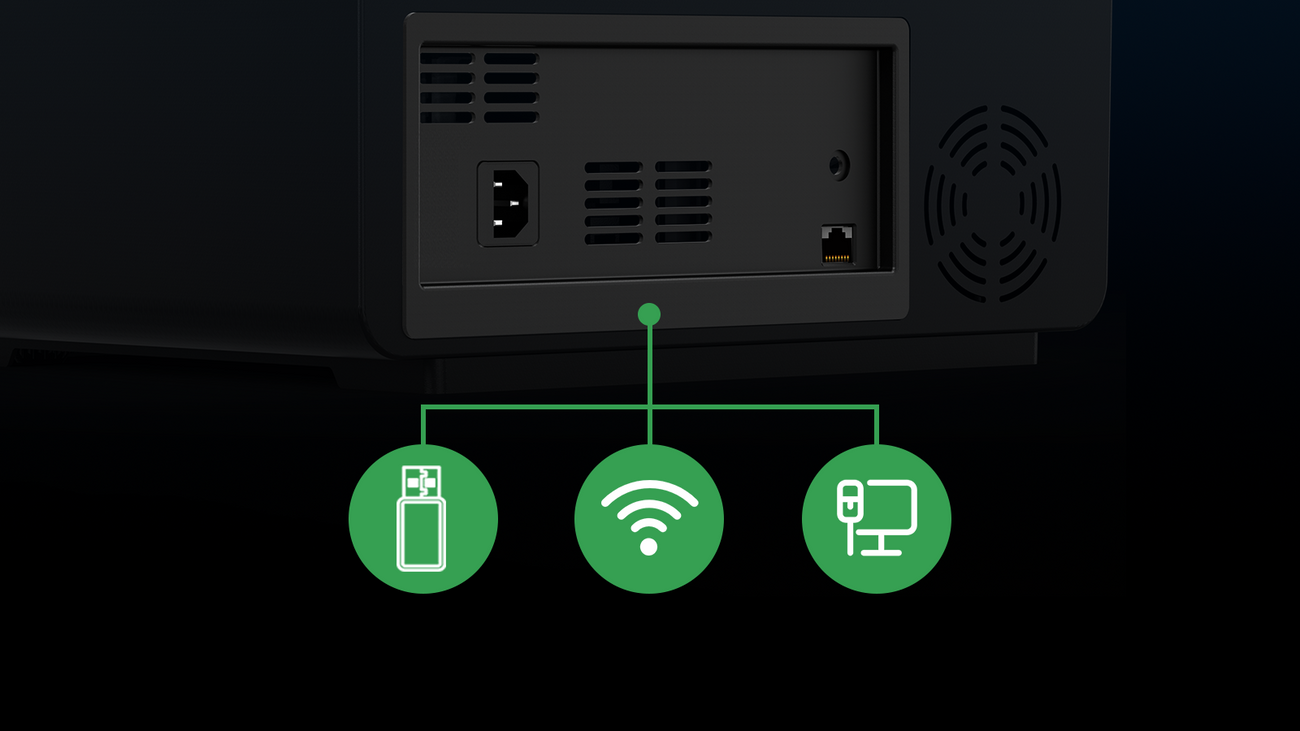

Connection options
Transfer files via USB, Wi-Fi or a wired network.
Dental models & applications
Illustrative examples of dental models and printing applications.
See the technology in motion
Short demonstrations of the light source, heating and resin feeding.
COB light source
A look inside the light source beneath the printing screen.
Automatic heating
See how heating works inside the print chamber.
Automatic resin feeding
Follow the resin from the cartridge into the vat.
